SMART PLUG by NG3
Electric propulsion is becoming a must for short distance RoPax or Pax vessels with the main challenge of an efficient charging solution even during short stops to reduce the size of the batteries.

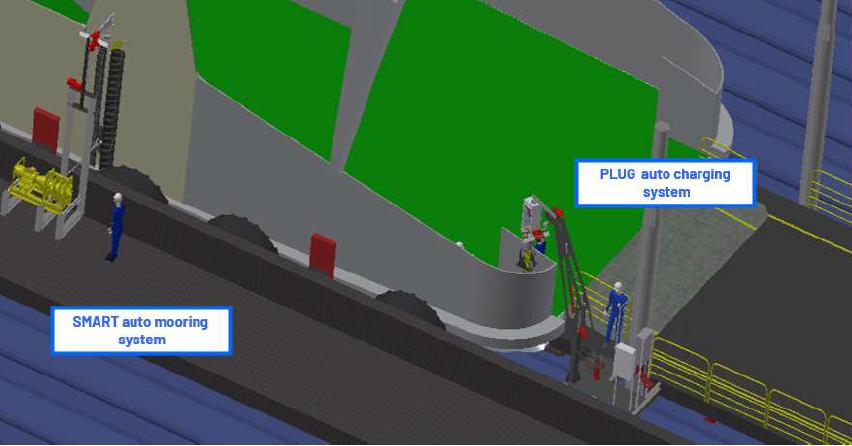

For this we propose our PLUG shore power solution combined with our SMART mooring one, both fully auto-mated.
This combination allows a “one stop shopping” approach for the customer, the combination with our SMART automated mooring preventing the risk of the vessel undocking before the PLUG is fully disconnected…
Full automation is of course a benefit with regard to crew workload but as well maximize the charging time during the shortest calls…
Main features and benefits
- Based on simple, sound and reliable mechanical effects
- "KISS "design: Keep It Safe and Simple!
- Compliant with CE machinery directive and class requirements
- "Hands off" operation, fully automated
- Scalable to required mooring and charging loads

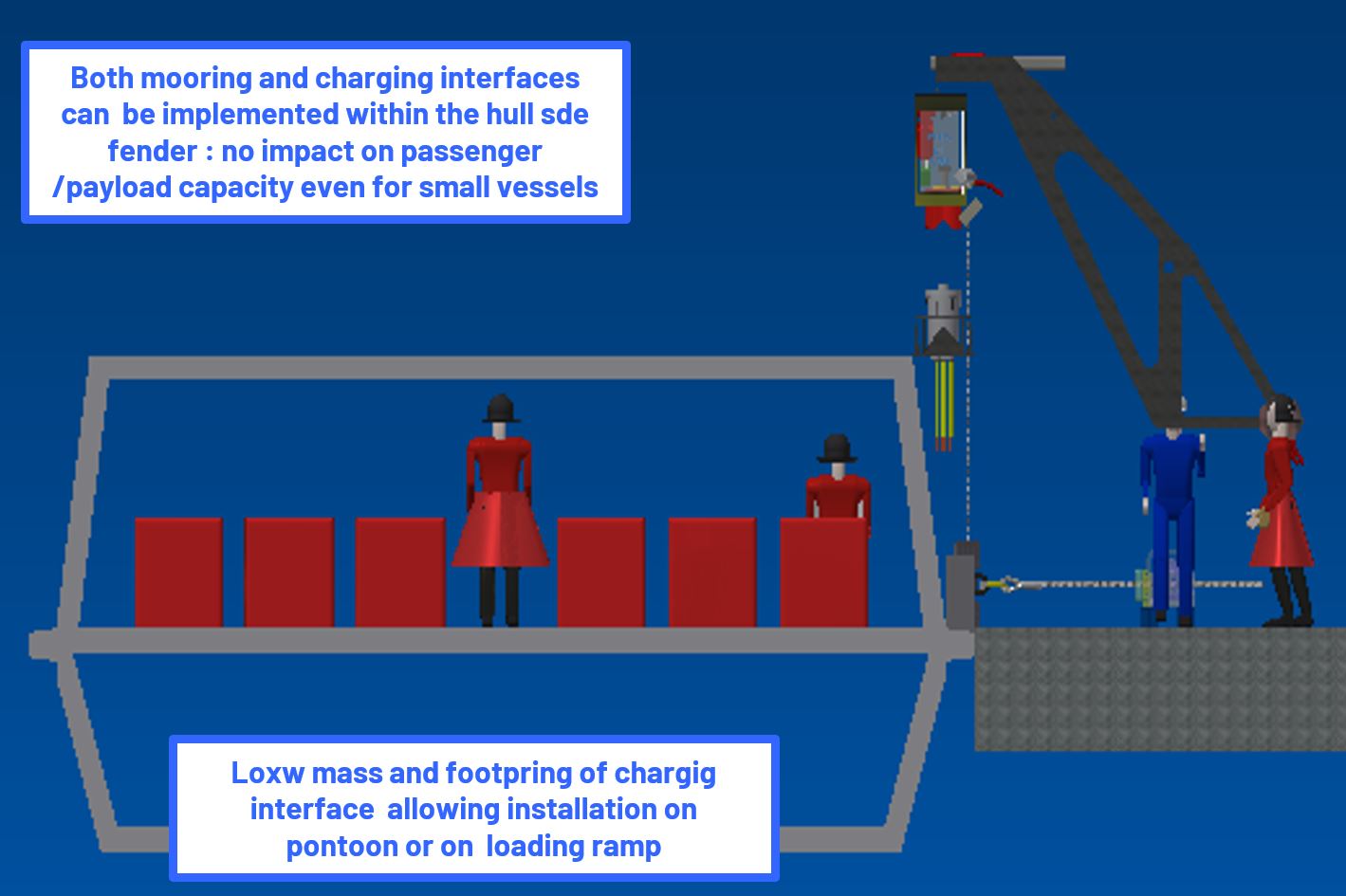

- Ship side interfaces within hull side fender : No impact on payload
- Mooring and charging within seconds after docking
- Terminal side based on standard mooring winch
- Can be winterized
- Based on either 1 kV or 11 kV PLUG technology
- Low mass both on ship and quay sides

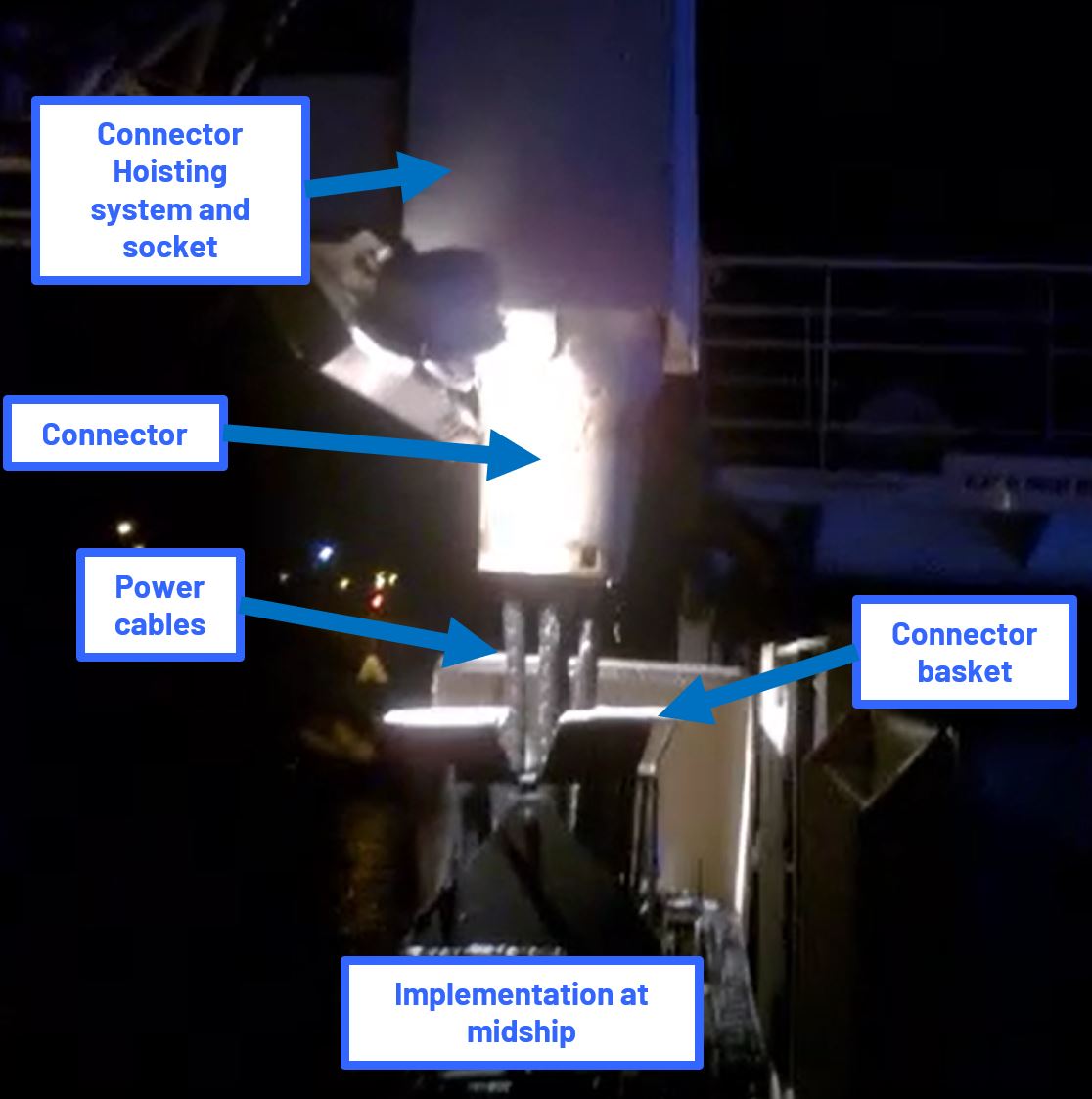

- Flexible location of ship side charging interface: midship or at the front
- Built in Emergency Release Capability
- Remote trouble shooting through a quay side internet interface
- Standard design for both ship and terminal side interfaces
- Limited quay side footprint
- Installation on board is straightforward =>no specific skills needed for yard
- Installation on quay is straightforward => no specific skills and harbour engineering
- Low Maintenance, easily performed by crew/terminal personnel
- Compact and compatible with retrofit on existing vessels and terminals within a few days
Smart Plug in details
