GREEN PLUG by NG3
With, among others, the advent of large capacity and efficiency batteries, full electric short sea crossing is in the offing, even for large vessels such as cross channel RoPax or Container Feeder Vessels.

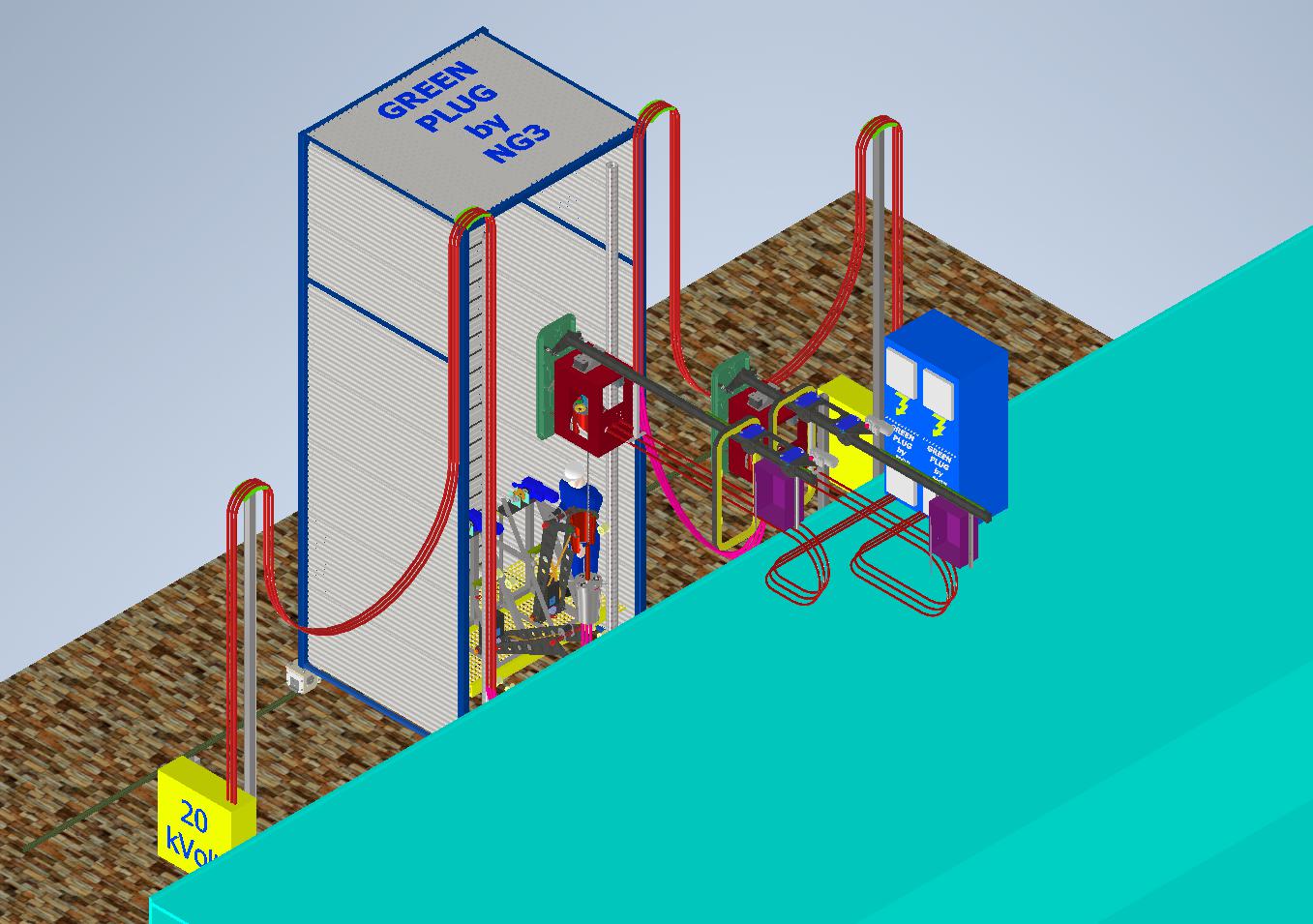

With “GREEN PLUG”, NG3 is proposing the large charging capability solutions which depending on the project can be implemented as a single or twin configuration, based on our well proven PLUG connector technology. Low or medium voltage, Alternate or Direct current, GREEN PLUG can be provided with the amperage capabilities that optimize the overall electrical architecture of your project!
Main features and benefits

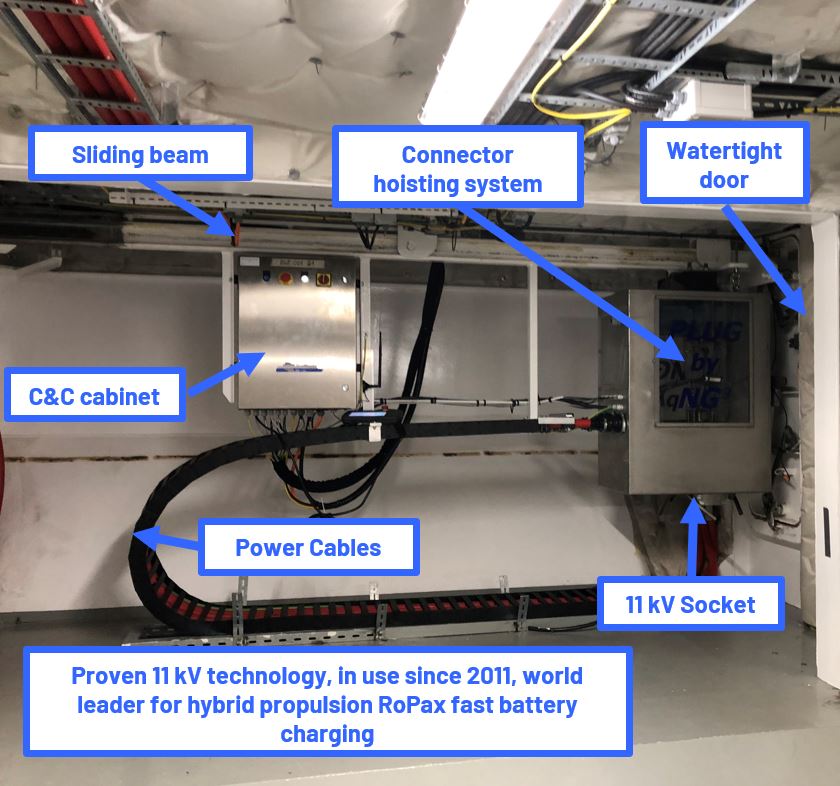

- Proven PLUG technology, more than 30 000 connexions since 2011!!

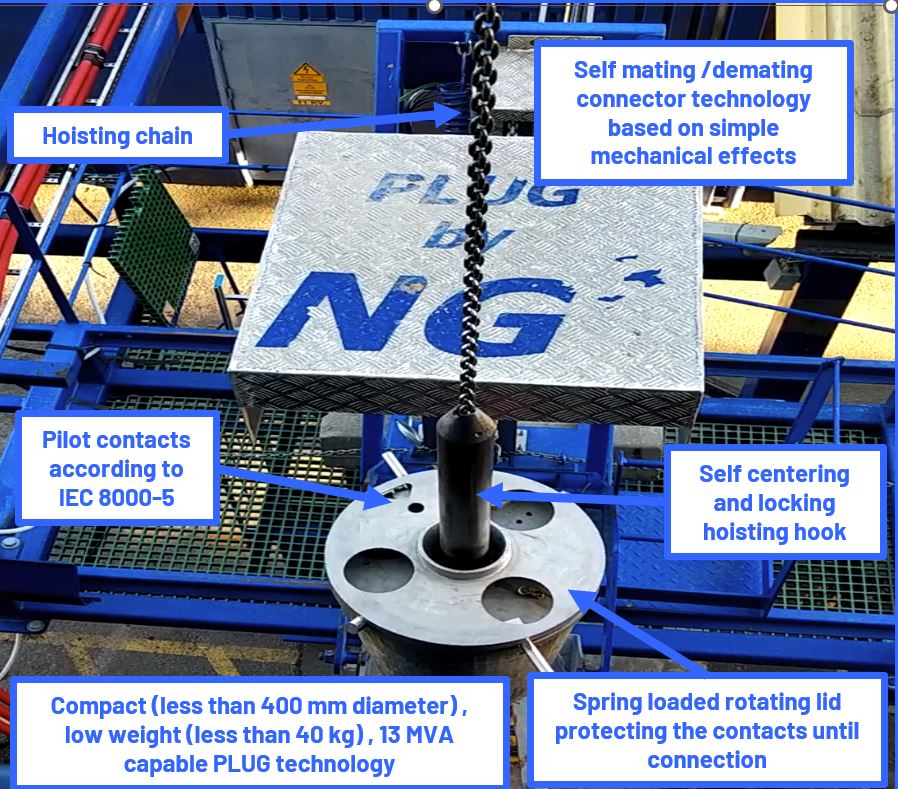

- Based on simple, sound and reliable mechanical effects
- Twin configuration each qualified for up to 11 kVolt / 700 Ampere
- Higher Voltage / Amperage available as an option
- Compliant with 80 005 IEC functional requirements and CE machinery directive and EUROCODE
- Fully automated operations
- Very limited on-board weight and foot print (can be installed near ramp)

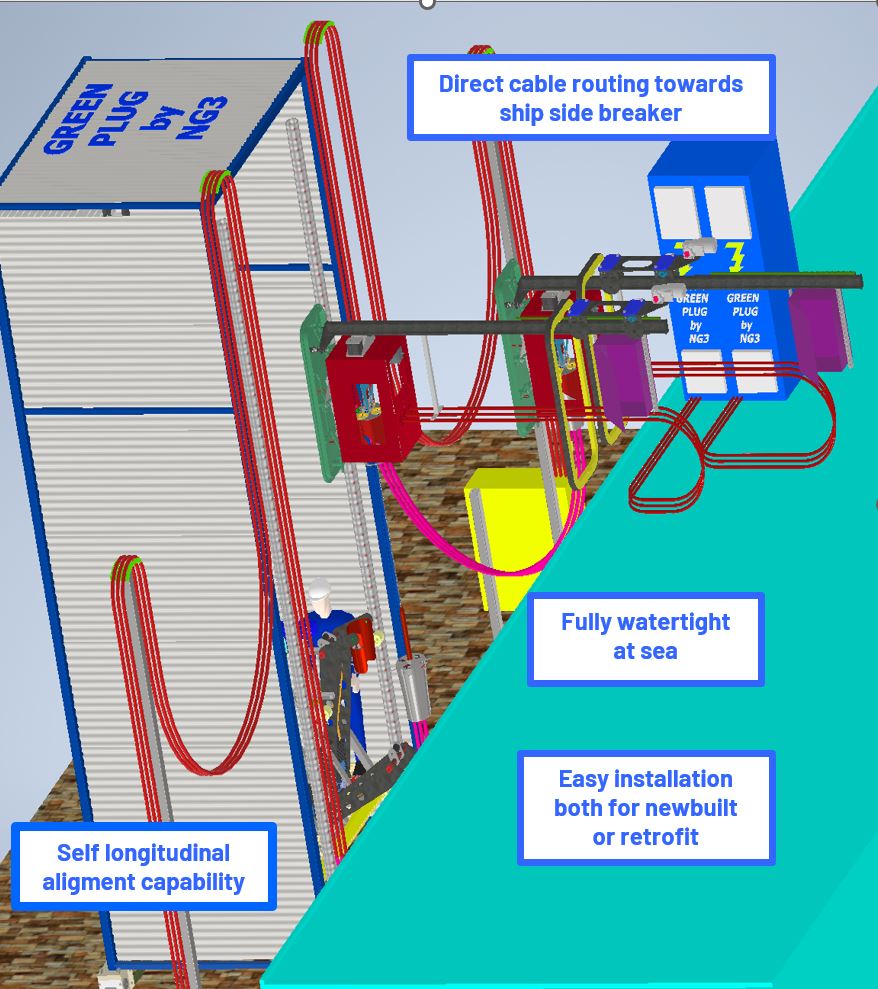

- Close to main switchboard, saves on board cable routing
- Charging power within as soon as the vessel is docked

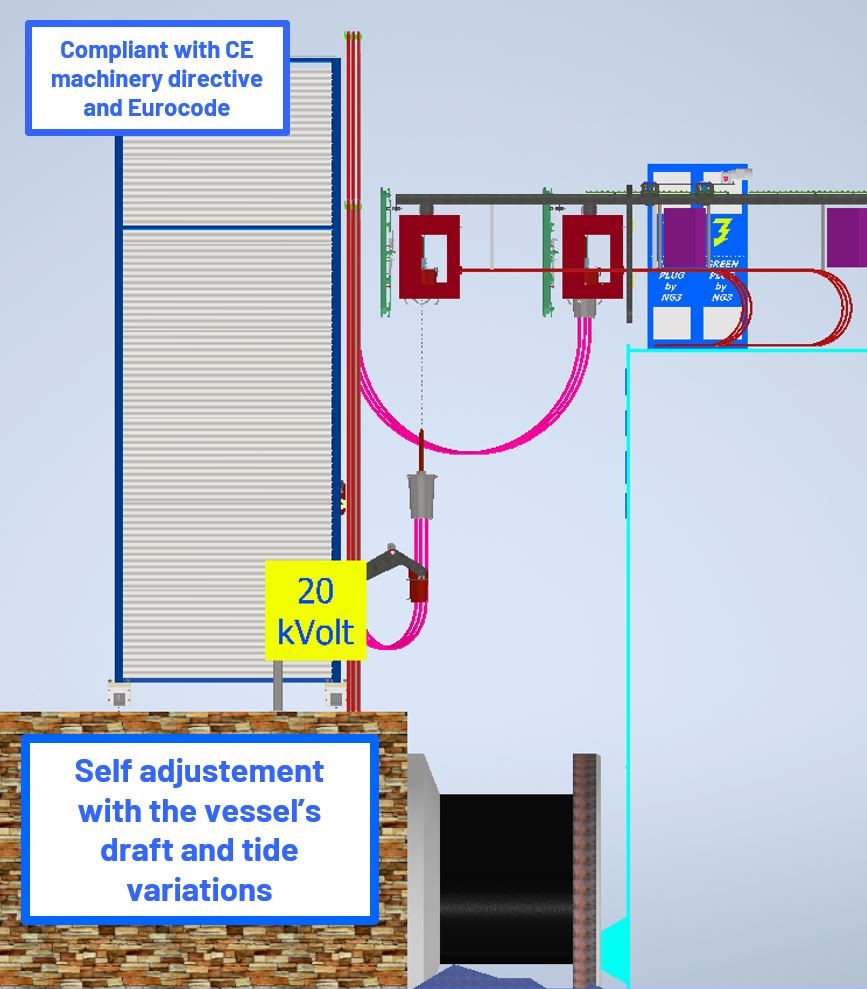

- Compatible with large draft/tide variations
- Built in Emergency Release Capability
- Remote trouble shooting through a quay side internet interface
- Self standing quay side structure: limited harbour engineering
- Environmentally friendly (optimizes use of steel and copper resources…)
- Low Maintenance, easily performed by crew/base personnel
- Compact and compatible with retrofit on existing vessels within a few days
- Can be winterized
- Available as twin or single configuration
- Twin configuration provides optimized charging of battery banks
GREEN PLUG in details
