IEC LIGHT by NG3
IEC 80 0005 standard solution has been on the market for more than a decade now days for RoPAx vessels, using crane systems to bring IEC manual connector within the reach of the crew who connect it.
With IEC LIGHT, NG3 offers a alternate, self-standing solution to reduce drastically the relevant port engineering.
Main features and benefits

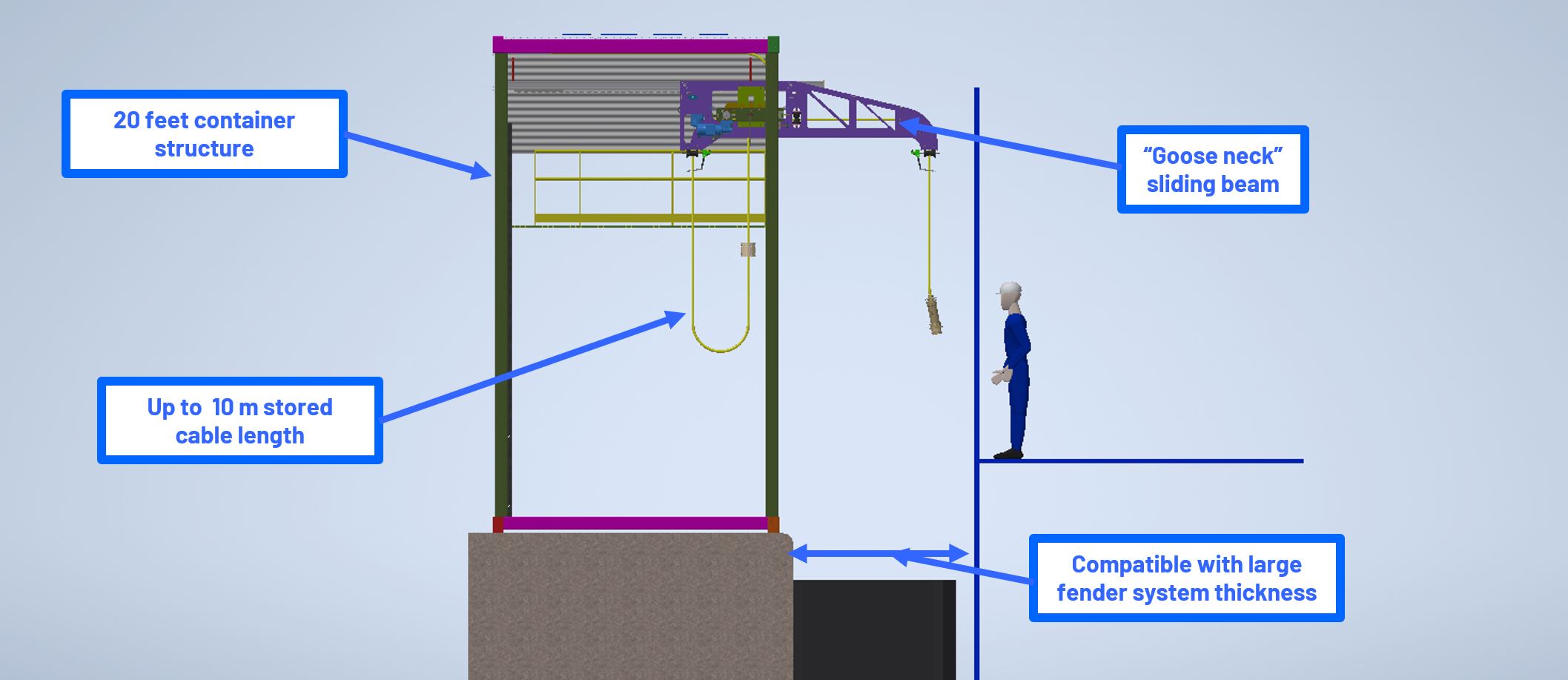

- Self standing structure 20 feet ISO container type depending on tide / deck locations
- No foundation required

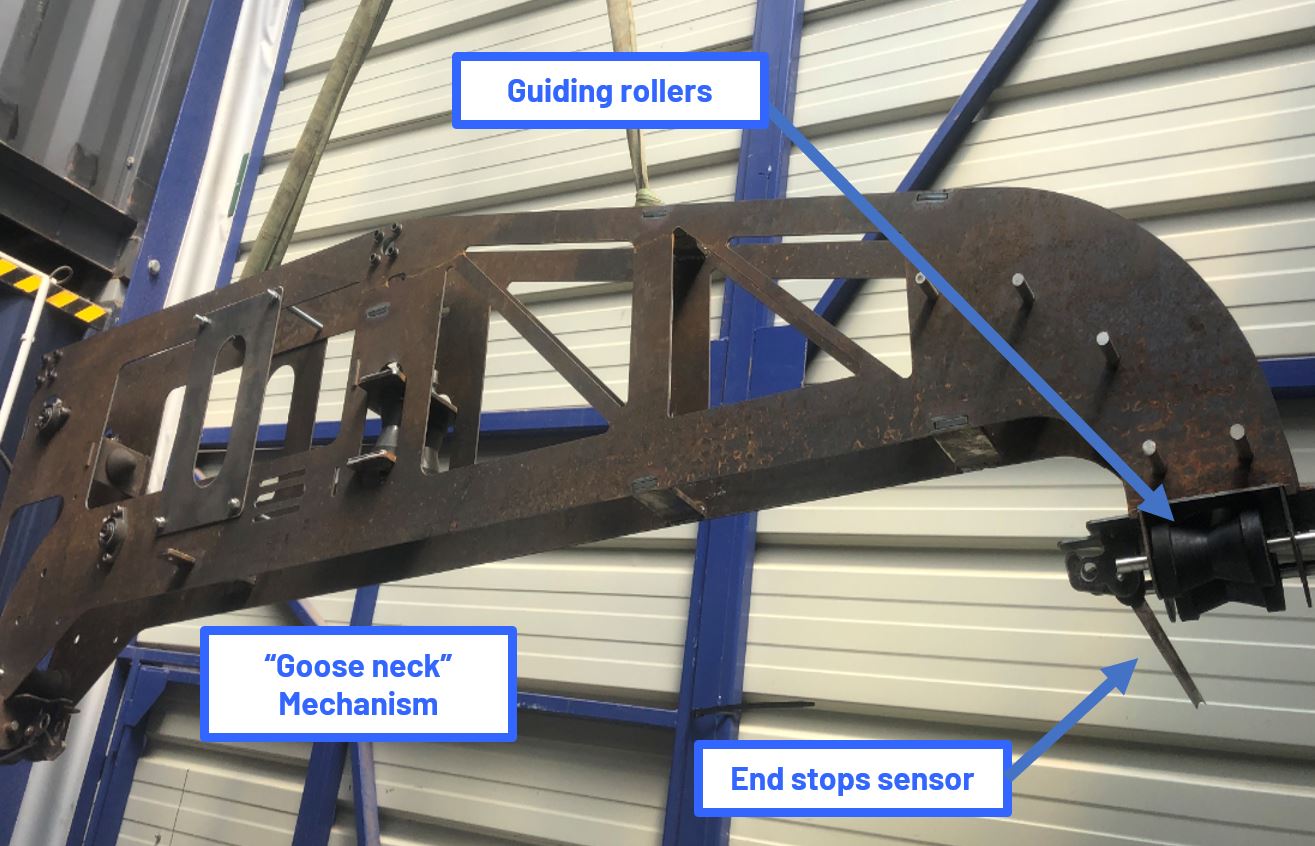

- Based on sound and reliable mechanical effects
- Compliant with 11kVolt 80 005 IEC standard
- Compliant with CE machinery directive and EUROCODE
- Can be easily relocated to another quay/harbour
- Compatible with large tide variations
- Design can be adapted to extreme tide variations & deck locations (up to 40 feet ISO container size)
- Remote control by crew
- Easy access for maintenance
- Automated cable tension monitoring, with alarms
- Standard design for both ship and terminal side interfaces
- Environmentally friendly (optimizes use of steel and avoids concrete foundations and heavy harbour engineering …)
- Installation on board is straightforward ⇒ no specific skills needed for yard
- Low Maintenance, easily performed by terminal personnel
- Moving parts protected from weather

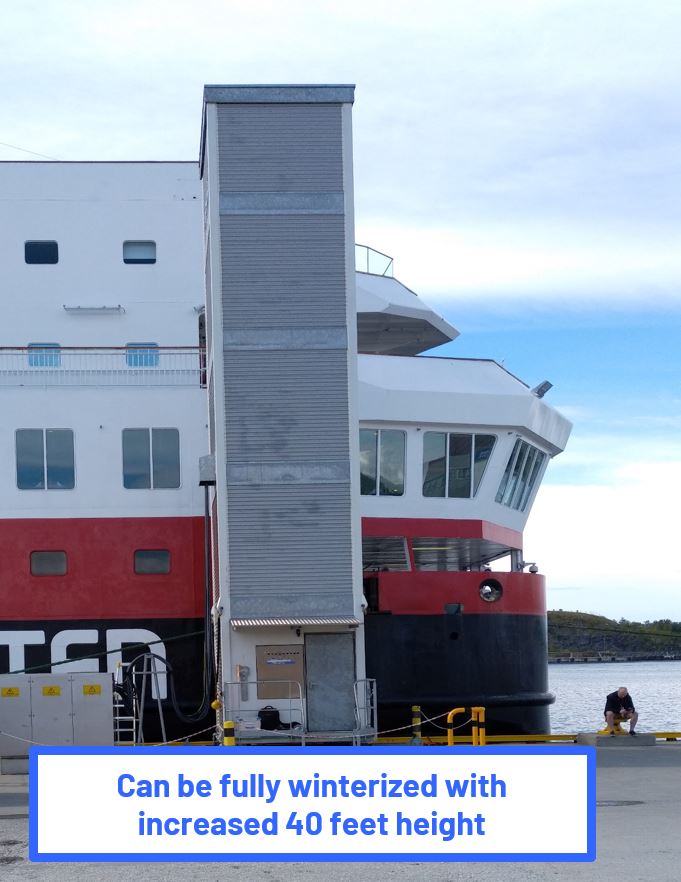

- Can be winterized based on previous arctic projects experience
IEC LIGHT in details
